Rapidvent – Air & Dirt Separator

Description

What is a an Air & Dirt Separator?

Rapidvent air and dirt separators are a crucial component in hydronic heating and cooling systems, designed to enhance the efficiency and longevity of the heating system by removing unwanted air and debris from the fluid. Rapidvent air and dirt separators play a vital role in maintaining optimal performance by preventing issues such as corrosion, noise, and reduced heat transfer efficiency for corrosion issues within the heating system please see our ADEY Diagnostic Kits

One of the primary functions of the Rapidvent air and dirt separator is to remove air bubbles that can accumulate in the system. Air in a hydronic system can lead to various problems, including reduced efficiency, increased wear on pumps, and uneven heating or cooling. When air is present, it can cause cavitation in pumps, leading to damage over time. The Rapidvent air and dirt separator works by providing a space where air bubbles can rise to the surface and be vented out, ensuring a steady flow of fluid without interruptions.

In addition to air removal, these separators are also designed to capture dirt and debris that can enter the system through various means, such as leaks or maintenance activities. Dirt particles can settle in the system and cause blockages in pipes and valves, leading to decreased performance and potential system failures. The Rapidvent vent air and dirt separator typically includes a filtration mechanism that captures these particles, allowing for easy cleaning and maintenance.

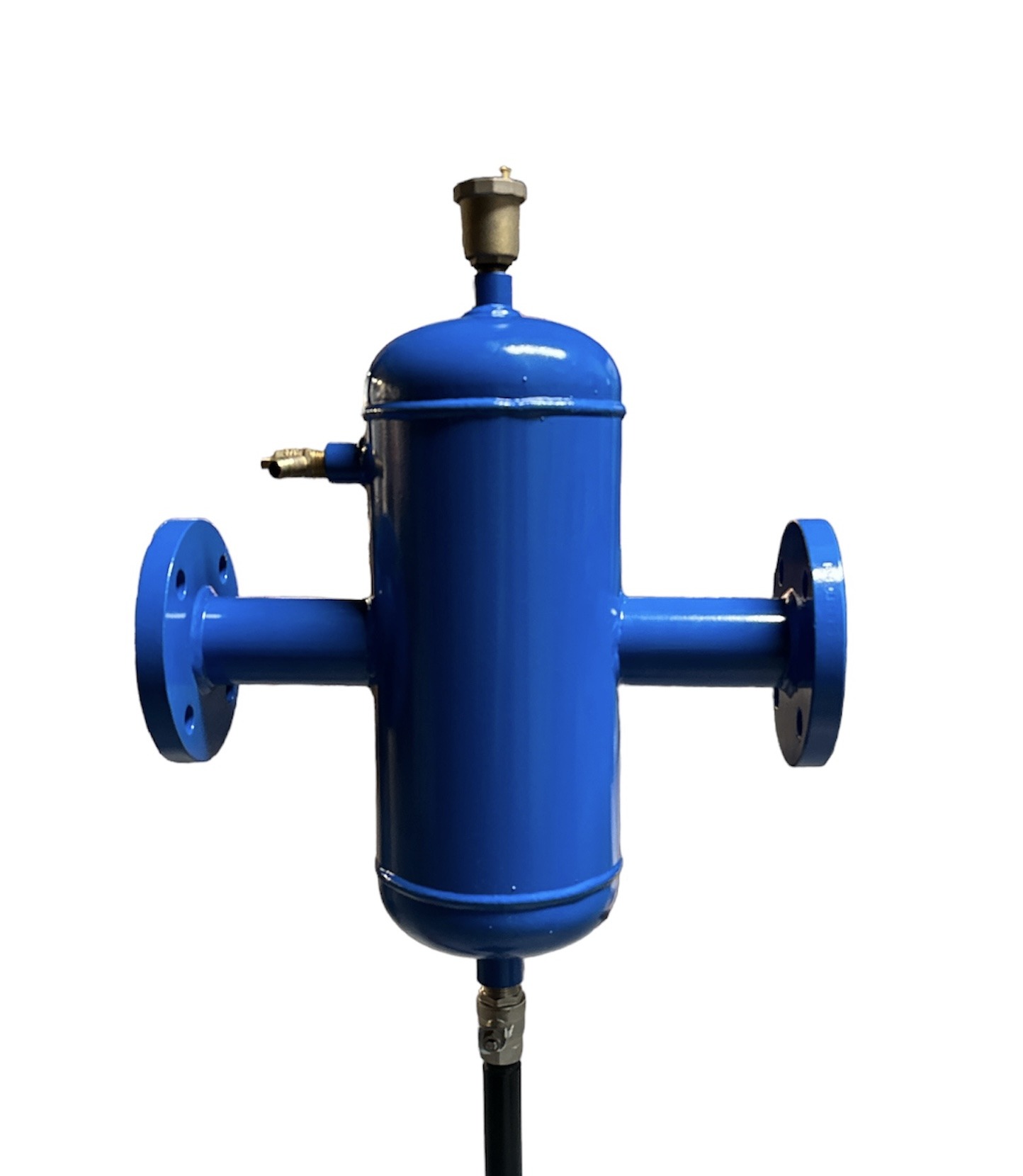

The design of our Rapidvent air and dirt separator feature a cylindrical body with PN16 inlet and outlet connections for fluid flow. Inside the Rapidvent air and dirt separator, is the microbubble brush style component that facilitates the separation process with the water pressure flowing through. The fluid enters the Rapidvent air and dirt separator, and as it flows through, the air bubbles rise to the top and are vented out, while dirt particles settle at the bottom. The Rapidvent air and dirt separator includes an automatic air vent, which eliminates the need for manual venting and enhances the overall system efficiency.

Installation of a Rapidvent air and dirt separator is typically recommended at strategic points within the heating system, such as near the boiler or pump. Proper placement is essential to ensure that the separator effectively captures air and dirt before it can circulate throughout the system. It is also important to consider the flow rate and size of the separator – stocked up to DN200 to match the specific requirements of your system.

Regular maintenance of our Rapidvent air and dirt separator is crucial to ensure its continued effectiveness. This will involve periodic release of dirt via the valve (included) within the collection chamber to remove accumulated dirt and debris. Rapidvent air and dirt separator is designed with easy access points for maintenance, allowing for quick and efficient servicing.

In summary, Rapidvent air and dirt separators are an essential component in a commercial heating system, providing significant benefits by removing air and debris from the system. By ensuring a clean and efficient flow of water, our separators help maintain system performance, reduce the risk of damage, and enhance the overall longevity of the heating or cooling system. Proper installation and maintenance of air and dirt separators are key to maximizing their effectiveness and achieving optimal results in hydronic applications.

Key Points

Microbubble Type
Flanged PN16
10 Bar Working Pressure
110 Degrees C

Note we also offer screwed air & dirt separator for sizes 1”, 1 ½ “ & 1 ¼”
