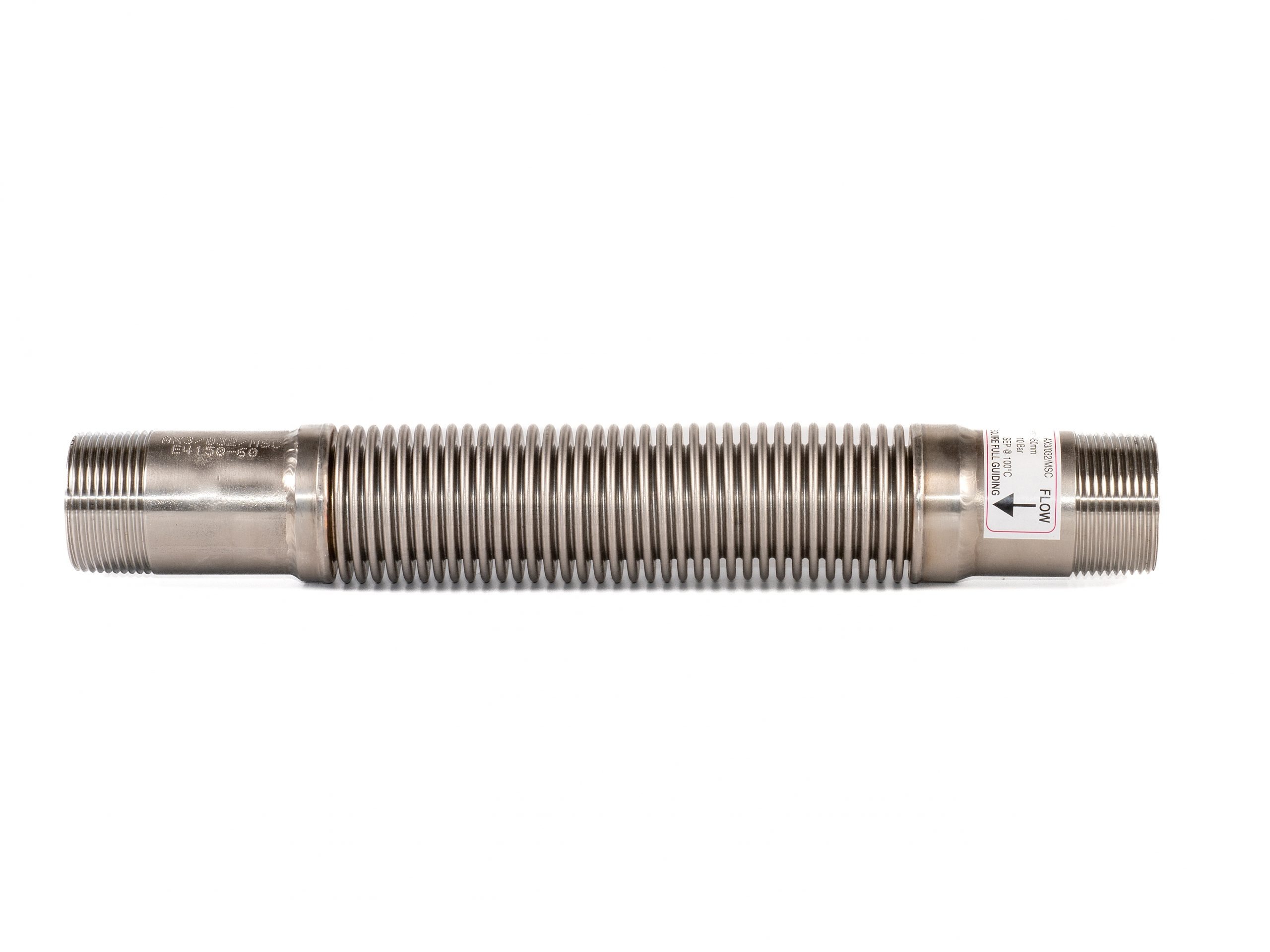

Screwed Axial Bellows WRAS Approved

Description

What is a Screwed Axial Bellow?

A screwed axial bellow compensator, also known as a screwed expansion joint or threaded compensator, is a mechanical device used in piping systems to absorb thermal expansion and contraction, between connected pipes. These screwed axial bellow compensators are particularly useful in systems where pipes are subjected to temperature fluctuations, which can cause them to expand or contract. The BSP screwed design allows for easy installation and adjustment, making them a popular choice in various industrial applications.

The primary function of a screwed axial bellow compensator is to manage the movement of pipes due to thermal expansion. As fluids within the pipes heat up, the pipes themselves expand. If the pipes are rigidly connected, this expansion can create excessive stress, leading to potential damage or failure. A screwed axial bellow compensator provides a connection that can absorb this movement, thus protecting the integrity of the piping system.

The construction of a screwed axial bellow compensator involves WRAS potable water stainless steel material. The axial bellows are designed to compress and extend as the pipes move, effectively accommodating the thermal expansion and contraction. The threaded ends of the compensator allow it to be easily connected to existing piping systems without the need for extensive modifications.

One of the key advantages of using a screwed axial bellow compensator is its ease of installation. The threaded connections allow for quick assembly and disassembly, making it an ideal choice for maintenance and repairs. This feature is particularly beneficial in systems where access may be limited or where frequent adjustments are necessary. The ability to easily install and replace these axial bellow compensators can lead to significant time and cost savings in the long run.

Screwed axial bellow compensators are widely used in various commercial environments, including schools, universities, hospitals, data centres, food processing, apartment blocks, and water treatment. In these applications, the ability to absorb thermal movements is crucial for maintaining the reliability and efficiency of the piping systems. Additionally, the materials used in the construction of these axial bellow compensators can be selected based on the specific requirements of the application, such as resistance to corrosion or high temperatures.

Regular maintenance and inspection of screwed axial bellow compensators are essential to ensure their long-term performance. Over time, factors such as wear and tear, exposure to harsh chemicals, or extreme temperatures can affect the integrity of the compensator. Routine checks for signs of deterioration, such as cracks or leaks, can help identify potential issues before they lead to system failures.

In conclusion, screwed axial bellow compensators are vital components in piping systems, providing protection against thermal expansion. Their easy installation and maintenance make them an attractive option for various industrial applications. By incorporating screwed axial bellow compensators into piping systems, industries can enhance the reliability and efficiency of their operations, ultimately leading to improved performance and reduced downtime. Axial bellow compensators are recommended to be used with a fully guided system, please see our low friction slide guide and anchor bracket products

What are the Working Conditions?

Pressure: Standard 10 Bar (Up to 16 Bar – Dependant on PED Conditions)
Temperature: 120 Degrees C
Test: 1.5x Working

Key Points

• Require Full Guiding
• Available in any Temperature or Pressure
• Supplied with CE certs where Applicable
• Internal Flow liner as Standard
• Bellows are Pre-Cold Dawn

PED Requirements

All Bellows supplied by Supplitech are manufactured and certified in accordance with EU PED Legislation and as such carry the relevant CE certification where required
